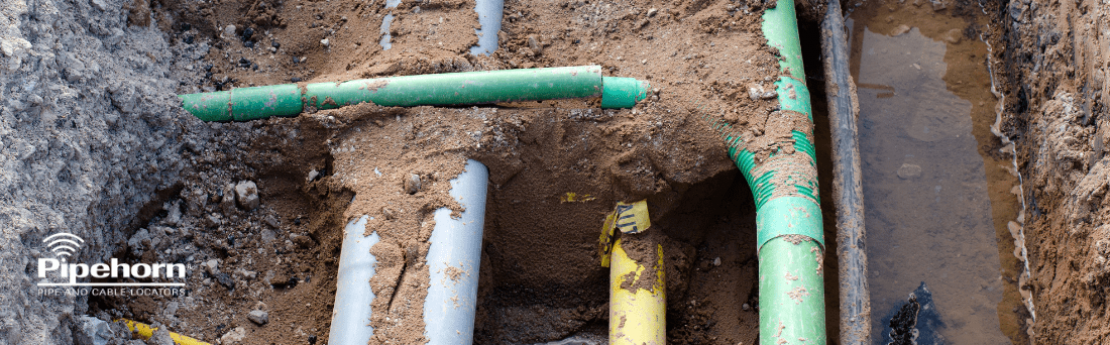

Under the surface of every city lies a complicated web of utilities: gas lines, electric cables, telecom conduits, water mains, and more, all packed tightly into limited underground space. These areas, often referred to as utility corridors, are among the most challenging environments for utility locating professionals. When multiple lines are buried close together, the chance of signal interference, misidentification, and inaccurate locating increases dramatically.
Understanding Utility Corridors
Utility corridors are organized routes where multiple utility lines are installed together in a shared space. These corridors are designed to streamline infrastructure planning, reduce environmental disruption, and make maintenance more efficient.
In these crowded environments, locating signals can easily bleed onto adjacent utilities, leading to confusion or misidentification. Choosing the right frequency is critical in helping to isolate the correct utility.
High-Frequency vs. Low-Frequency Locating
When working in crowded utility corridors, low frequencies offer key advantages. They’re less prone to signal “bleed-over” or jumping onto nearby conductors, which makes them ideal for pinpointing a single utility in tight, congested areas. Because the signal stays more confined to the intended line, there’s less risk of misidentifying other nearby utilities. However, low frequencies typically require a direct connection to the utility line and may not work well on poor conductors or when a good ground return path isn’t available.
On the other hand, high frequencies are more versatile in terms of signal application. They can induce signals onto lines even without a direct connection, which is helpful when access to a utility is limited. High frequencies also travel better through bad connections or corroded joints, making them effective in challenging environments. However, they’re more likely to jump to adjacent utilities in a crowded corridor, increasing the chances of tracing the wrong line if not used carefully.
In summary, both frequencies offer unique advantages in locating within utility corridors. Low frequencies offer better precision in tight utility corridors, while high frequencies provide easier application and broader coverage but with a higher risk of signal interference or misrouting.
The Pipehorn Advantage
Pipehorn equipment is specifically designed to meet the demands of this type of locating. The 800 Series, particularly the 800-HL, is built to handle complex environments. This model offers both a 480 kHz high-frequency signal and a 9 kHz low-frequency option, giving professionals the flexibility to adapt to a variety of locating conditions.
When direct connection to a utility is not possible, the high-frequency inductive mode keeps you working, even when traditional methods can fall short. It is particularly effective when locating cast iron, poor tracers, and short services where other signals may struggle.
The consequences of inaccurate utility locating are well known. That is why professionals rely on the right combination of equipment and expertise. In environments where accuracy is critical and conditions are complex, high and low-frequency locating is essential.
